Live Inspection System
01
Starch Residue
Residual starch from the moulding tray adhered to the candy surface.
01 STARCH RESIDUE
02 COLOR DEVIATION
03 SHAPE DEFECTS
04 CONJOINED PRODUCT
05 CLUMPS
06 FOREIGN BODIES
07 MOULD CONTAMINATION
KeepOne Swiss Vision Technologies
Powered by HypériOneSortecno Sorvex Varvix
Sort More. Detect More. Yield More.
AI Optical Sorting for Gummies & Jellies — Color, Shape, Foreign Bodies, Contamination
What if every gummy and jelly piece could be verified individually before it reaches the packaging line?
After demoulding, product variability increases — pieces deform, stick, carry starch residue, or deviate in color and shape.
The Sortecno Sorvex Varvix, powered by HypériOne, performs high-speed optical sorting between demoulding and packaging — combining color imaging, AI-driven geometry analysis, and precision ejection to remove non-conforming product in real time.
up to 2.5 t/h
THROUGHPUT
100%
piece-by-piece inspection
Multi-Parameter
PRODUCT CONTROL
24/7
CONTINUOUS OPERATION
SCROLL
IN ACTION
See It Running.
Watch the Sortecno Sorvex Varvix, powered by HypériOne, on a live gummy production line — sorting every demoulded piece for color, shape, residual starch, and foreign bodies, automatically, at full line speed.
STEP BY STEP
How It Works.
The Sortecno Sorvex Varvix sorts every demoulded gummy and jelly piece individually — combining electromagnetic vibration distribution, True-Color high-resolution imaging, and HypériOne AI classification across seven defect categories simultaneously. Non-conforming pieces are removed by Targeted Ejection Logic before the packaging line. The line never stops.
01
INFEEDModular Laning & Vibration Distribution
Pieces exit the demoulding station and are distributed across the inspection lanes by an integrated electromagnetic vibration system — gently separating product from the belt and ensuring single-piece presentation at full throughput.
Modular laning feeders adapt to different product geometries — gummy bears, worms, spheres, slabs — without mechanical adjustment between formats.
02
ACQUISITIONHigh-Resolution True-Color Imaging
High-resolution cameras capture every piece in a single pass — recording color, shape, surface condition, and geometric profile. True-Color image processing preserves color accuracy independent of ambient lighting variations.
Optional 3D laser, NIR, and SWIR camera technologies available for applications requiring sub-surface inspection or extended spectral analysis.
03
AI ANALYSISHypériOne & True-Shape Technology
HypériOne classifies every piece simultaneously across all seven defect categories. True-Shape Technology applies AI-powered geometry analysis to identify malformed and conjoined units that fall outside the expected outline.
Self-optimising deep learning models continuously refine classification performance — no manual recalibration required across recipe changes or production condition variations.
04
EJECTIONTargeted Ejection Logic (TEL)
Non-conforming pieces are removed individually by precision air valves — each firing with millisecond accuracy on the specific piece classified as defective. Conforming product flows uninterrupted to the packaging line.
TEL minimises product loss and false rejections — only the defective piece is ejected, not adjacent good product. Every ejection is logged with defect classification, image, and timestamp.
01
Modular Laning & Vibration Distribution
Pieces exit the demoulding station and are distributed across the inspection lanes by an integrated electromagnetic vibration system — gently separating product from the belt and ensuring single-piece presentation at full throughput.
02
High-Resolution True-Color Imaging
High-resolution cameras capture every piece in a single pass — recording color, shape, surface condition, and geometric profile. True-Color image processing preserves color accuracy independent of ambient lighting variations.
03
HypériOne & True-Shape Technology
HypériOne classifies every piece simultaneously across all seven defect categories. True-Shape Technology applies AI-powered geometry analysis to identify malformed and conjoined units that fall outside the expected outline.
04
Targeted Ejection Logic (TEL)
Non-conforming pieces are removed individually by precision air valves — each firing with millisecond accuracy on the specific piece classified as defective. Conforming product flows uninterrupted to the packaging line.
WHAT THE SYSTEM DETECTS
What Gets Blocked.
Engineered for precision at scale: the Sorvex Varvix inspects every gummy and jelly piece in real time — detecting color deviation, shape defects, foreign bodies and conjoined products before they leave the line.
SORVEX ECOSYSTEM
Together with Sorvex Mogul.
The Sortecno Sorvex Varvix is the second inspection point on the gummy and jelly production line. Upstream, the Sortecno Sorvex Mogul prevents defective deposits at the starch tray stage. The Varvix then takes over after demoulding — sorting every piece by color, shape, size, foreign bodies, and contamination before packaging. Two systems. One HypériOne AI platform.
PREVIOUS
Sorvex Mogul
Inline starch tray inspection — between imprinting and deposit. Prevents defective trays from entering production.
35 trays / min YOU ARE HERE
Sorvex Varvix
AI optical sorting for gummies & jellies — color, shape, size, foreign bodies, and contamination, after demoulding.
up to 2.5 t/hComplete inline coverage — from starch tray to packaging infeed.
Specifications
Technical Features.
Engineered for gummy and jelly production lines operating 24/7 in food-grade environments.
01 True-Color High-Resolution Imaging IMAGING
High-resolution industrial cameras with True-Color image processing — full-surface single-pass acquisition covering color, shape, geometry, and surface condition simultaneously.
02 AI & Deep Learning — HypériOne HYPÉRIONE
Self-optimising deep learning models — simultaneous classification across all seven defect categories, configurable acceptance thresholds per defect class and recipe, no manual recalibration required across production condition variations.
03 True-Shape Technology GEOMETRY
AI-powered geometry analysis identifies the unique outline of every piece — reliable detection of misshapen, malformed, and conjoined product that escape standard color-based sorting.
04 Targeted Ejection Logic (TEL) EJECTION
Precision air valve array — per-piece targeted ejection minimises product loss and false rejections. Every ejection logged with defect class, image, and timestamp for full traceability.
05 Modular Laning Feeders INFEED
Variable laning tracks suitable for different product types and geometries — no moving parts, easy cleaning, simple maintenance, and long-life construction.
06 Electromagnetic Vibration System DOSING
Integrated electromagnetic vibrating feeder — precise control over product layer height and travel speed. Accelerometer-based feedback ensures constant flow under varying load conditions on the vibrating plane.
07 Optional Advanced Inspection EXTENSIONS
3D laser scanning, NIR, and SWIR camera technologies available as optional upgrades — sub-surface inspection and extended spectral analysis for applications requiring maximum sorting accuracy.
08 Throughput & Performance PERFORMANCE
Standard capacity up to 2.5 t/h. Available in two standard scan widths: 600 mm and 900 mm. Customisable configurations available for specific line requirements and spatial constraints.
09 Software & HMI CONTROL
Industrial-grade capacitive touchscreen interface — real-time per-defect statistics, image archive with timestamp, recipe-based parameter management, multi-language support, and remote access for monitoring and support.

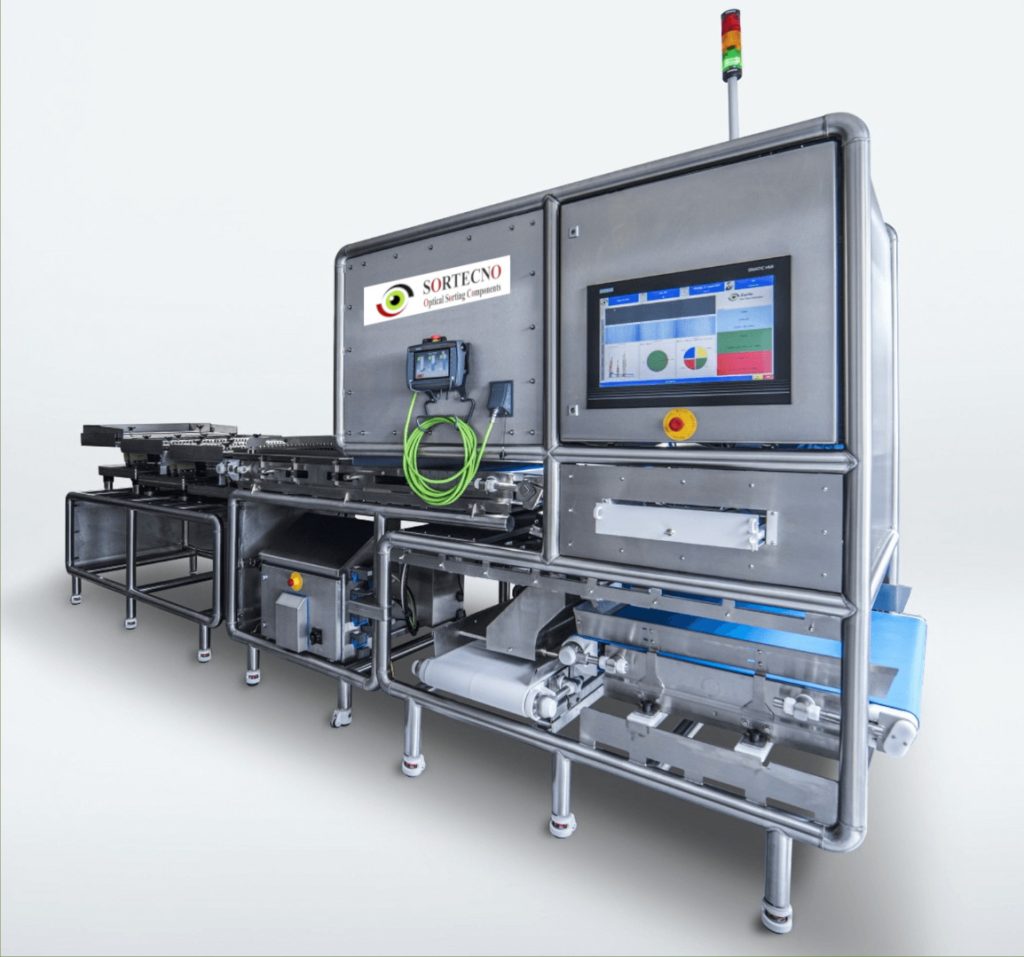

10 Hygienic Industrial Design DESIGN
Food-grade stainless steel construction — contamination-resistant design, hermetic protective casing for vibrating components, fully washable. C-frame on wheels for simple line integration. Compliant with food industry hygiene standards.
DEMO
Ready to see
Sortecno Sorvex Varvix
powered by HypériOne
on your line?
Request a technical consultation with our team. We come to you — with a deep understanding of your product, plant layout, and quality objectives.
